Control Cables
Low Voltage Control Cables
Specification:
Designation Type H07Z-U, H07Z-R and H07Z-K BS EN 50525-3-41 (Formerly BS 7211:1998). Flame Retardant to IEC 60332-1 Vertical Flame Propagation Test. Our products tested at internationally reputable labs, BASEC & bsi.
Conductor:
High conductivity soft annealed copper according to BS EN 60228, Class 1, Class 2 stranded and Class 5 flexible conductor.
Insulation:
Polyvinyl chloride (PVC) & Cross-linked polyethylene (XLPE) with Maximum service temperature 90ºC.
Insulation:
- Copper wire screen - cross section are upon request.
- Copper tape screen
- Tinned copper & annealed copper wire Braided
- Lead sheath
Armoring (upon request):
Galvanized Steel Wire “SWA” or Galvanized Double Steel Tape “STA"
Outer Sheathing:
PVC ST2 and LS0H ST8
Special Requirement (upon request):
- High fire performance, Flame propagation tests: IEC 60332-3.24 Category C - IEC 60332-3.23 Category B - IEC 60332-3.22 Category A
- Fire resistant control cable with MICA - BS 6387 CAT CWZ
- Chemical performance: Oil resistance
- Sunlight & UV Resistant
- Water resistance
- Anti-termite resistant
- Special color for insulation and outer sheath
- Numbering identification for cores
- Special outer sheath material: PVC(FRLS), PE
- Different packing options are available

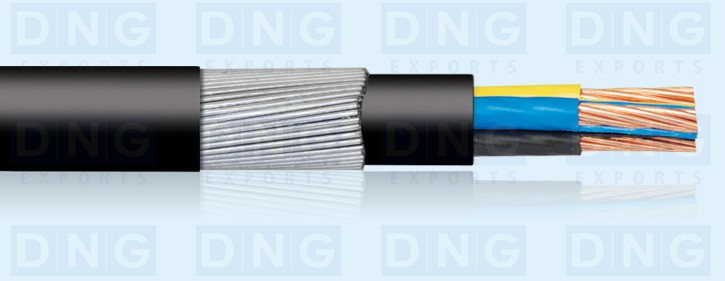

XLPE insulated LS0H sheathed cables 0.6/1.0 kV and 1.8/3.0 kV, IEC & BS Standards
Specification:
Electrical low voltage cables complying with IEC 60502-1 BS 6724. Our products tested at internationally reputable labs, BASEC & bsi. All cable are Flame Retardant to IEC 60332-3.24 Category C Flame Propagation Test, Oil resistance and Sunlight & UV Resistant.
Conductor
High conductivity soft annealed copper according to BS EN 60228, Class 1, Class 2 stranded and Class 5 flexible conductor and Stranded aluminum conductor Class2. Conductor can be offered with round, round compacted and sectored shape.
Insulation
Cross-linked polyethylene (XLPE) with Maximum service temperature 90ºC.
Armoring (upon request):
- Aluminum Wire Armored “AWA” for single core cable.
- Galvanized steel wire “SWA” for multi core cable.
Outer Sheathing
Low Smoke & Fume Zero Halogen (LS0H).
Special Requirements (upon request):
- High fire performance, Flame propagation tests: IEC 60332-3.23 Category B - IEC 60332-3.22 Category A
- Water resistance
- Anti-termite resistant
- Shield type
- Special color for insulation and outer sheath
- Different packing options are available
