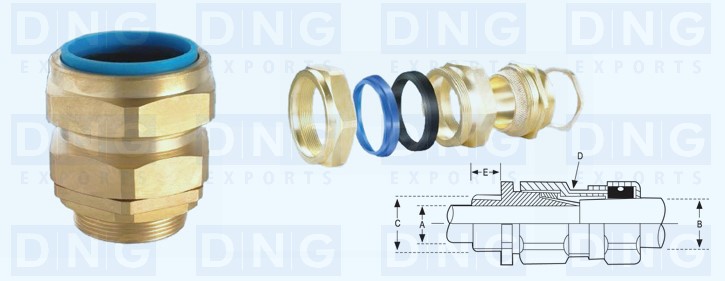

CW 3 Part Type 2 Cable Gland
Technical Details
| Size | 20 mm to 90 mm S & L |
|---|---|
| Standard | BS 6121 |
| Application | For indoor or outdoor use with all types of SWA Cable. |
| Function | CW type glands provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland.. |
| IP Rating | IP66 |
| Optional Threads | METRIC, NPT, BSP & PG |
| Finish | Natural Brass Finish, Nickel Finish. |
| Operating Temperature | Standard seals -20° C to +80° C. |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts & Earth Tag. |
Specification
Size |
Thread Size 'C' |
Minimum Length of Thread 'D' |
Cable Range |
||
|---|---|---|---|---|---|
MM |
INCH |
MAX 'A' |
MAX 'B' |
||
CW 20S |
M20 |
½” |
10 |
11.80 |
15.80 |
CW 20L |
M20 |
½” |
10 |
14.00 |
20.80 |
CW 25S |
M25 |
3/4″ |
10 |
18.00 |
24.00 |
CW 25L |
M25 |
3/4″ |
10 |
20.00 |
27.20 |
CW 32S |
M32 |
1″ |
10 |
24.50 |
31.00 |
CW 32L |
M32 |
1″ |
10 |
26.30 |
33.50 |
CW 40S |
M40 |
1¼” |
15 |
30.40 |
38.50 |
CW 40L |
M40 |
1¼” |
15 |
32.20 |
40.00 |
CW 50S |
M50 |
1½” |
15 |
38.20 |
46.30 |
CW 50L |
M50 |
2″ |
15 |
44.00 |
52.60 |
CW 63S |
M63 |
2″ |
15 |
50.00 |
59.00 |
CW 63L |
M63 |
2½” |
15 |
56.00 |
65.30 |
CW 75S |
M75 |
2½” |
15 |
62.00 |
71.60 |
CW 75L |
M75 |
3″ |
15 |
68.00 |
78.00 |
CW 90S |
M90 |
3″ |
20 |
84.00 |
96.00 |
CW 90L |
M90 |
3″ |
20 |
84.00 |
102.00 |
