Flameproof DC Cable Gland IIA & IIB

Get Quote

Description

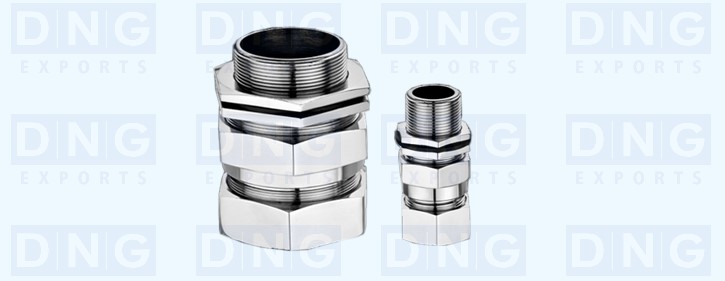

Flame Proof Double Compression Glands are generally used in flammable gas / vapours area (for gas group I, IIA & IIB) as well as in normal climatic conditions also which are weather proof, water proof and dust proof (IP-66) which can be used in Hazardous climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere. These glands are suitable for all types of cables like Armour , Unarmour, Power, Instrumention, XLPE etc.

Gland Consist Of Following Parts:

LOCK NUT
ENTRY SEAL RING
GLAND NIPPLE
INNER SEAL RING

ARMOUR CLAMPING RING
GLAND BODY
OUTER SEAL
COMPRESSION NUT

Technical Details

SIZE	AEFP01SSA TO AEFP 016	ALTERNATE FINISH	Tin, Chrome
ENTRY THREAD	METRIC	SEAL MATERIAL	Neoprene / Silicon
ALTERNATE THREAD	NPT, BSC ET, PG, METRIC, BSP	SEAL SHORE HARDNESS	50 - 60
ENTRY THREAD RANGE	1/2" TO 4.5" OR M12 TO M110	ACCESSORIES	Shroud, Earth Tag, Stopper, Reducer, Adaptors (Supplied Separately Upon Request)
GLAND MATERIAL	Brass (IS-319)	GLAND STANDARD	BS 6121, IS/IEC 60079-0:2011, IS/IEC 60079-1:2007 (Reaffirmed : 2012)
ALTERNATE MATERIAL	Aluminium, SS, MS	FLAMEPROOF PROTECTION	IS/IEC 60079-1:2007 (Reaffirmed : 2012)
OPERATING TEMPERATURE	-30 C TO +100 C	INGRESS PROTECTION	IP 66 AS PER IS/IEC 60529:2001 (Reaffirmed 2014)
FINISH	Nickel Plated	APPROVAL	Our AEFP Series Cable Glands are approved CSIR-Central Institute of Mining And Fuel Research – Dhanbad

Specification

No.	SIZE	H	G	E	F	C		D	CABLE DIMENSIONS
				E	F	(THREAD)		D	CABLE DIMENSIONS
				(A/F)	(A/C)	ET	MM	(THREAD LENGTH)	A UNDER ARMOUR DIA	B OVER ALL DIA
1	DNGFP 01SSA	12.00	8.50	19.50	22.50	1/2"ET	M12	25	8.00	10.0
2	DNGFP 01SS	13.50	9.00	22.00	25.00	3/4"ET	M20	25	8.00	12.0
3	DNGFP 01S	17.50	11.00	25.00	29.00	3/4"ET	M20	25	10.00	16.5
4	DNGFP 01	19.50	14.50	27.50	32.00	3/4"ET	M20	25	12.50	18.0
5	DNGFP 01A	19.50	14.50	27.50	32.00	1"ET	M25	25	12.50	18.0
6	DNGFP 02	21.00	16.00	29.00	34.00	1"ET	M25	25	14.00	20.0
7	DNGFP 02A	21.00	16.00	29.00	34.00	3/4"ET	M20	25	14.00	20.0
8	DNGFP 03	23.50	18.00	31.00	36.00	1"ET	M25	25	16.00	23.0
9	DNGFP 04	27.50	21.00	37.00	43.00	1"ET	M25	25	19.00	26.0
10	DNGFP 04A	27.50	21.00	37.00	43.00	1.1/4"ET	M32	25	19.00	26.0
11	DNGFP 05	31.50	25.00	41.00	47.00	1.1/4"ET	M32	25	23.00	30.0
12	DNGFP 05A	31.50	25.00	41.00	47.00	1.1/2"ET	M40	25	23.00	30.0
13	DNGFP 06	34.00	28.00	46.00	53.00	1.1/2"ET	M40	25	26.00	33.0
14	DNGFP 06A	34.00	28.00	46.00	53.00	1.1/4"ET	M32	25	26.00	33.0
15	DNGFP 07	38.00	31.00	50.50	58.00	1.1/2"ET	M40	25	29.00	37.0
16	DNGFP 08	42.00	36.00	56.00	64.00	2"ET	M50	25	34.00	41.0
17	DNGFP 09	47.00	41.00	59.00	67.00	2"ET	M50	25	39.00	46.0
18	DNGFP 010	53.00	45.00	66.00	76.00	2"ET	M50	25	43.00	52.0
19	DNGFP 010A	53.00	45.00	66.00	76.00	2.1/2"ET	M63	25	43.00	52.0
20	DNGFP 011S	57.50	51.00	74.00	85.00	2.1/2"ET	M63	25	49.00	56.0
21	DNGFP 011	61.50	55.00	79.00	92.00	2.1/2"ET	M63	25	53.00	60.0
22	DNGFP 012	68.00	62.00	84.00	97.00	3"ET	M75	25	60.00	66.0
23	DNGFP 013A	74.00	67.00	90.00	103.00	3"ET	M75	25	65.00	72.0
24	DNGFP 013	79.00	73.00	99.00	113.00	3.1/4"ET	M82	25	71.00	78.0
25	DNGFP 014	86.00	80.00	105.00	122.00	3.1/2"ET	M90	25	78.00	84.0
26	DNGFP 015	96.00	89.00	116.00	134.00	4"ET	M100	25	87.00	94.0
27	DNGFP 016	106.00	103.00	130.00	149.00	4.1/2"ET	M110	25	10.00	104.0
