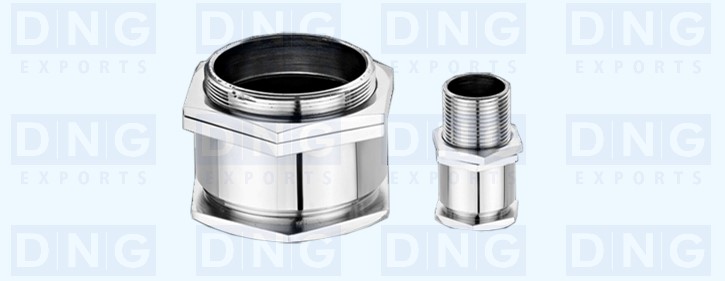

Single Compression Medium Duty Cable Gland
Description
These Glands Are Used With Both Indoor And Outdoor, In All Climatic Conditions As It Is Weatherproof & Dust Proof. These Glands Are Available In Different Sizes And Suitable For All Cables Up To 1000 Sq.Mm And Control Cables Up To 61 Cores.
- LOCK NUT
- GLAND BODY
- GLAND BUSH
- MS WASHER (3 NOS)
- RUBBER SEAL
Technical Details
| SIZE | 3/8”- 10 MM To 4”-100 MM | FINISH | NICKEL PLATED |
| ENTRY THREAD | ET | ALTERNATE FINISH | TIN , CHROME |
| ALTERNATE THREAD | METRIC, NPT, PG, METRIC, BSP | SEAL MATERIAL | NATURAL / NITRILE |
| GLAND MATERIAL | BRASS (IS-319) | ACCESSORIES | SHROUD, EARTH TAG (SUPPLIED SEPARATELY UPON REQUEST) |
| ALTERNATE MATERIAL | ALUMINIUM, S.S, M.S | GLAND STANDARD | IS-12943 |
| OPERATING TEMPERATURE | -30 C TO +100 C | INGRESS PROTECTION | IP 55 |
Specification
|
No.
|
SIZE
|
A/F
|
D1
|
D2
|
D3
|
C
(THREAD) |
D
(THREAD LENGTH) | CABLE DIMENSION
| |
|---|---|---|---|---|---|---|---|---|---|
A
UNDER ARMOUR DIA | B OVERALL DIA | ||||||||
| 1 | 3/8”-10mm | 18.00 | 12.70 | 10.40 | 12.70 | 5/8" ET | 6.50 | 8.00 | 10.00 |
| 2 | 1/2”- 12mm | 20.50 | 15.40 | 12.45 | 12.70 | 5/8" ET | 7.00 | 10.0 | 14.00 |
| 3 | 5/8”-16mm | 20.50 | 15.40 | 12.20 | 15.50 | 3/4" ET | 7.00 | 10.0 | 14.00 |
| 4 | 3/4"-19mm | 21.50 | 17.80 | 14.65 | 15.50 | 3/4" ET | 7.00 | 13.0 | 16.50 |
| 5 | 7/8”-22mm | 24.50 | 20.30 | 16.20 | 15.50 | 3/4" ET | 7.50 | 15.0 | 19.00 |
| 6 | 1”-25mm | 28.50 | 23.50 | 19.00 | 21.60 | 1" ET | 7.50 | 18.0 | 22.00 |
| 7 | 1.1/8”-28mm | 32.80 | 28.00 | 24.00 | 24.90 | 1.1/8" ET | 8.80 | 22.0 | 26.00 |
| 8 | 1.1/4”-32mm | 36.00 | 31.00 | 27.50 | 27.70 | 1.1/4" ET | 8.90 | 26.0 | 30.00 |
| 9 | 1.3/8”-35mm | 40.60 | 35.50 | 30.00 | 29.50 | 1.3/8" ET | 9.50 | 29.0 | 34.00 |
| 10 | 1.1/2”-38mm | 44.20 | 38.90 | 33.00 | 33.60 | 1.1/2" ET | 9.50 | 32.0 | 37.00 |
| 11 | 1.3/4”-45mm | 50.00 | 44.60 | 39.00 | 40.10 | 1.3/4" ET | 10.00 | 38.0 | 43.00 |
| 12 | 2”-50mm | 58.00 | 51.80 | 46.75 | 45.20 | 2" ET | 10.80 | 45.0 | 50.00 |
| 13 | 2.1/4”-57mm | 63.50 | 58.20 | 49.80 | 52.00 | 2.1/4" ET | 10.80 | 48.0 | 56.00 |
| 14 | 2.1/2”-63mm | 69.00 | 62.70 | 55.75 | 58.40 | 2.1/2" ET | 12.00 | 54.0 | 61.00 |
| 15 | 2.3/4”-70mm | 76.00 | 69.20 | 61.00 | 65.10 | 2.3/4" ET | 12.00 | 60.0 | 67.00 |
| 16 | 3”-75mm | 82.50 | 75.40 | 65.50 | 71.00 | 3" ET | 13.50 | 64.0 | 73.00 |
| 17 | 3.1/4”-82mm | 89.00 | 82.00 | 74.00 | 76.20 | 3.1/4" ET | 13.50 | 72.0 | 80.00 |
| 18 | 3.1/2”-88mm | 95.00 | 85.00 | 78.00 | 83.00 | 3.1/2” ET | 13.50 | 76.0 | 82.00 |
| 19 | 4”-100mm | 108.00 | 100.00 | 90.00 | 92.00 | 4” ET | 14.00 | 88.0 | 98.00 |
