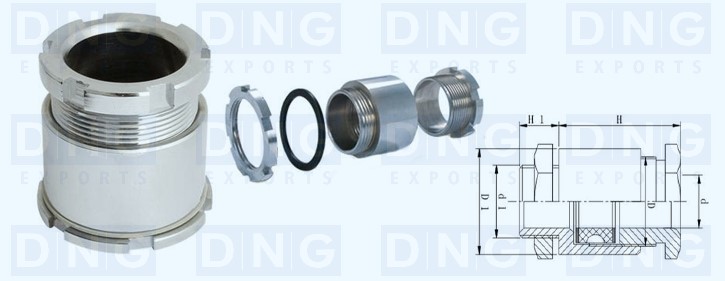

Marine Cable Gland
Description
Marine cable glands are specifically designed for use in marine and offshore environments, where there is a need for robust and reliable cable management solutions. Marine cable glands are used for both outdoor and indoor use with all types of braided or unarmoured marine electrical cable fittings.
Technical Details
| Size | 10 mm to 70 mm |
|---|---|
| IP Rating | IP54 & 66 |
| Application | Outdoor or indoor for use with all type of braided or unarmoured Marine electrical cable fitting. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | ISO Metric, NPT, BSP & BSPT |
| Finish | Chrome Finish, Brass Finish, Nickel Finish |
| Operating Temperature | Standard Seals -20° C to +80° C |
Specification
Size
| 'A' |
'B' |
'C' |
THREAD LENGTH (IN MM) ‘D’ |
|---|---|---|---|---|
10 |
45.00 |
10.00 |
3/8″ BSP |
11 |
15 |
50.00 |
15.00 |
½” BSP |
10 |
20 |
53.00 |
20.00 |
3/4″ BSP |
11 |
25 |
60.00 |
25.00 |
1″ BSP |
12 |
30 |
65.00 |
30.00 |
1¼” BSP |
12 |
35 |
70.00 |
40.00 |
1½” BSP |
12 |
40 |
70.00 |
40.00 |
1½” BSP |
12 |
45 |
85.00 |
50.00 |
2″ BSP |
12 |
50 |
85.00 |
50.00 |
2″ BSP |
12 |
55 |
87.00 |
60.00 |
2½” BSP |
12 |
60 |
88.00 |
60.00 |
2½” BSP |
12 |
65 |
100.00 |
70.00 |
3″ BSP |
14 |
70 |
110.00 |
70.00 |
3″ BSP |
14 |
